How to Turn a Sketch Into a 3D Model
A drawing already holds the most important part of a 3D model, its outline. The rest has to be guessed or built. This guide shows which drawings turn into good models, which ones cause trouble, how to get your page ready in ten minutes, and how to do it by hand if you would rather not use AI.
By the Bake3D teamUpdated 8 min read
Short answer
To turn a sketch into a 3D model, draw one whole subject with clean, closed outlines, ideally at a three-quarter angle with the arms and legs apart. Scan it or photograph it flat in even light, crop it, and add light shading or flat color. Then upload it to an image to 3D tool, or use it as a reference to model by hand in Blender.
How we checked this: The Bake3D steps, limits and prices were checked against our studio and its code on 8 October 2026. The example drawings are line renders we made in Blender 4.4 from our sample fox model, to show what each kind of drawing looks like. We did not bake these example drawings. Blender steps follow the Blender manual.
A sketch shows a shape from one side. A 3D model needs every side, plus a texture for its colors. When you turn a drawing into 3D, something has to fill in what the drawing does not show. An AI tool, like Bake3D’s image to 3D generator, guesses it. A 3D artist builds it by hand. Either way, a clear drawing makes the job much easier.
What kinds of drawing work
The outline of your drawing becomes the outline of the model. Small details, like fur marks or buttons, mostly end up painted on the surface as texture. So spend your effort on the outline first.
Drawings that work well have these things in common:
- One subject, drawn whole. Head to feet, ear tips to tail tip. A drawing of a head gives you a head.
- Clean, closed outlines. One firm line around each part, with no gaps where the shape is open.
- A three-quarter view. Turn the character a little, so you see the front and one side at once. This shows depth that a flat front view hides.
- Arms and legs apart. Leave space between the arms and the body, and between the legs. Parts that touch in the drawing can join together in the model.
- A standing, relaxed pose. A simple pose is easier to read than a jump or a twist. It also rigs and animates better later.
- A plain background. White paper or a flat color. No floor, no scenery, no notes next to the drawing.

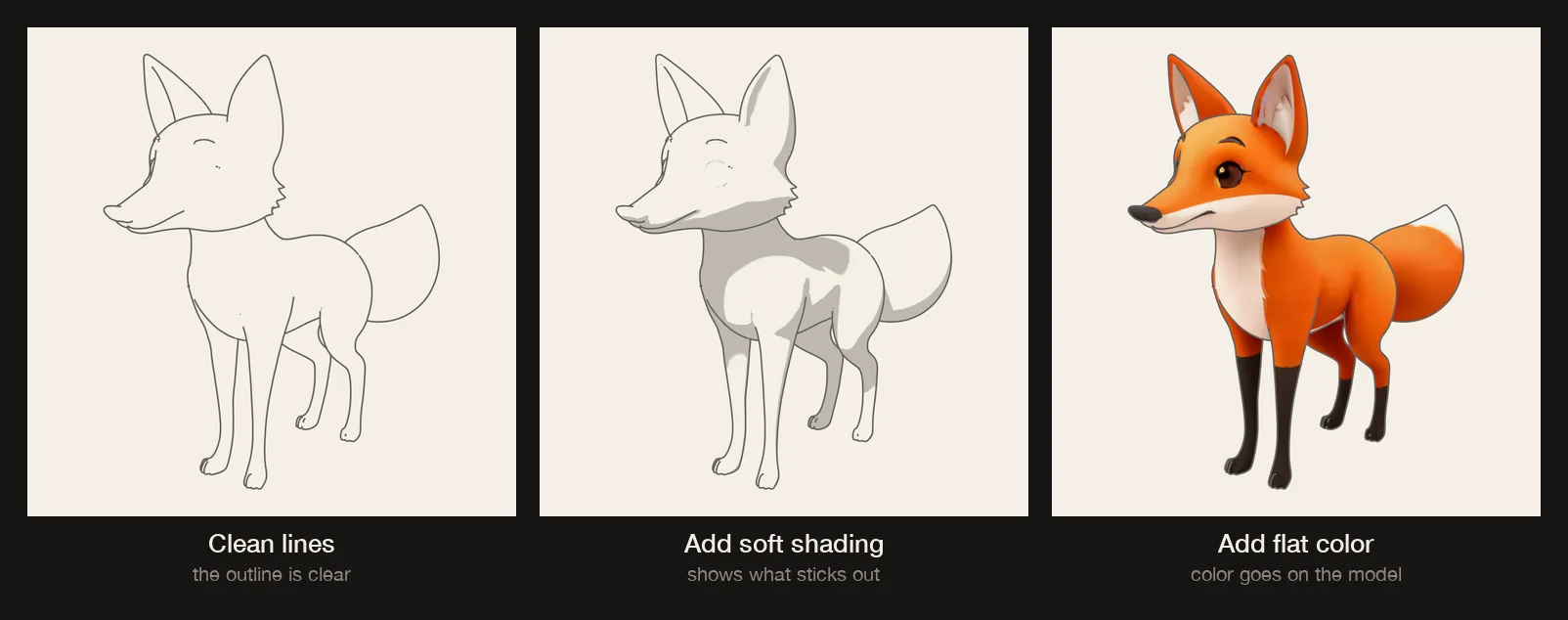

Shading helps, but keep it light. Flat line art has no depth clues, so a little soft shading on one side shows which parts come toward you. Heavy, dark shadows are a problem, though. They can be read as part of the surface, which is where dents and odd bumps come from.
Color helps the texture. The colors in your drawing become the colors of the model. A pencil sketch gives you a grey or paper-colored model with dark lines painted on it. If you want a colored model, color the drawing first. Flat colors work fine.
What fails, and why
These are the most common reasons a drawing turns into a poor model.

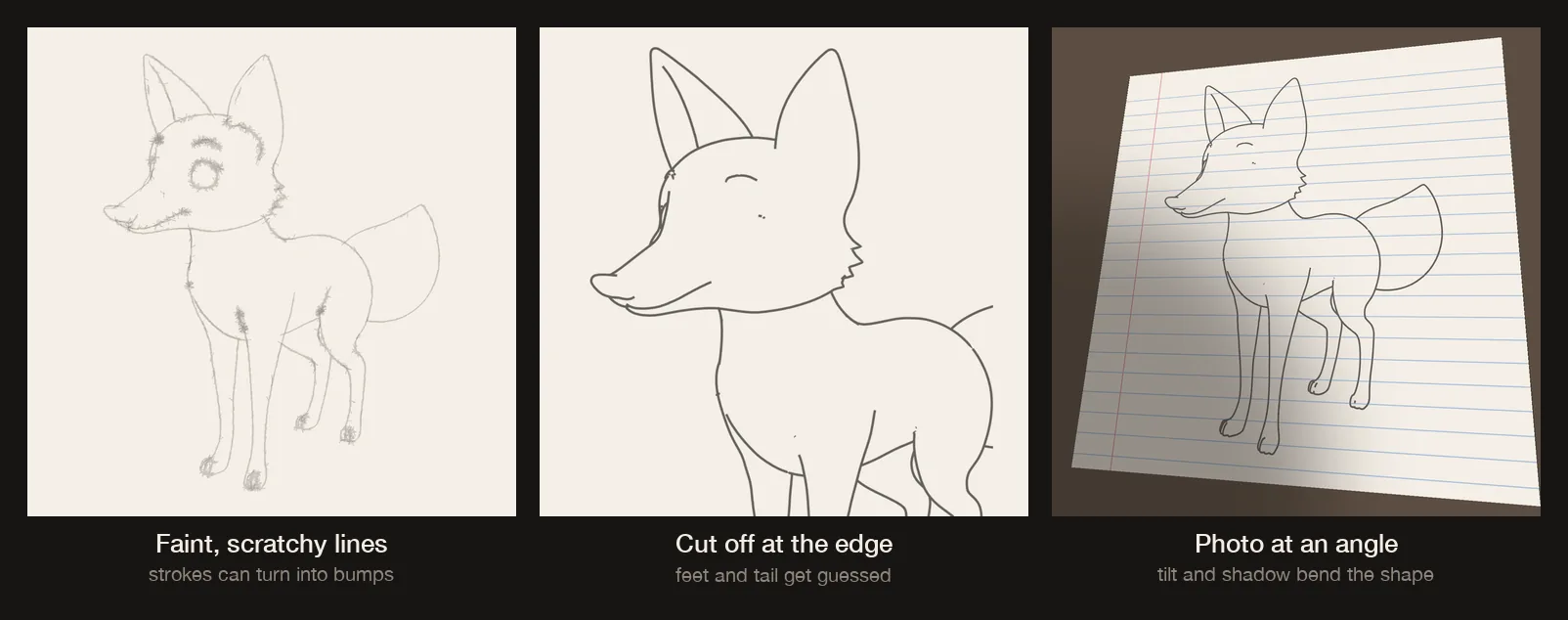

- Faint or scratchy lines. Many light strokes on top of each other make the outline unclear. Extra strokes can turn into bumps or marks.
- Parts cut off by the edge. If the feet or the tail leave the page, the tool has to guess them. Leave a margin all around.
- A photo taken at an angle. A tilted phone photo bends the shape. A shadow from your hand or phone looks like a dark patch on the model. Ruled lines from notebook paper can end up in the texture.
- Crossed or touching limbs. Arms folded across the chest, or a tail wrapped around the legs, can fuse into one lump.
- Strong perspective. A hand drawn huge because it reaches toward you will come out huge.
- Several things on one page. Character sheets, extra sketches and written notes all compete with the subject.
- Only a close-up. A face without a body gives you a face without a body.
Some of these are fixed for you when you rig in Bake3D, as you will see below. A clean drawing still gives the best result, because every fix is a guess too.
Get your sketch ready in ten minutes
- Finish the outline. Go over the final lines with a darker pencil or a pen. Erase the rough lines you do not want.
- Scan it, or photograph it flat. Put the page on a table in daylight, with no shadow on it. Hold the phone straight above the page. A scanner is even better.
- Crop it. Leave a small margin around the whole subject. Remove notes and other drawings from the frame.
- Clean the background. Turn it white or one flat color. Most phone photo apps can raise the brightness so grey paper turns white.
- Add shading or color, if you like. Soft shading on one side, or flat colors, as in the first figure above.
- Save it as PNG, JPG or WebP. About 1,000 pixels on the long side is plenty. A clean small drawing beats a messy large one.
If you also drew the side and back, line them up at the same height and size. Our guide to making a character turnaround sheet shows how.
Make the 3D model with AI
There are many AI image to 3D tools. Some, like Meshy and 3D AI Studio, have pages made just for sketches. Meshy says its sketch page uses its image to 3D pipeline. 3D AI Studio describes two steps: it first turns the drawing into a rendered picture, then turns that picture into 3D. We checked both pages on 8 October 2026 and have not tested their output.
In Bake3D there is no special sketch mode. A drawing is treated like any other picture. Here is how it works, checked against our studio on 8 October 2026:
- Check your drawing for free. Sign in and upload it to the free picture check. It tells you what Bake3D will build, which parts will move, anything to watch for, and the exact price. You get three checks a day with a free account. See how it works on the free demo page.
- Upload it in the studio. PNG, JPEG or WebP, up to 12 MB. Pick a quality level: Draft costs 30 credits, Standard 40 and High 55.
- Choose whether to rig it. A rig adds a skeleton so the model can move. It costs 25 credits more and includes a four-second first animation.
- Let Bake3D fix the pose, if it needs to. When you rig a picture, the Rig-ready pose option checks it first. If arms or legs touch, cross or are cut off, it makes a cleaned up copy of your picture with the parts apart, and builds the model from that. A character sheet or a busy page is cut down to the main subject. The copy keeps your drawing’s style, so flat colors and lines stay flat colors and lines. Your own picture stays in the project, and this step is included in the price.
- Add more views, if you have them. Up to three more drawings of the same character from other sides, four pictures in all, cost 10 credits more. If you only have one drawing, the Side and back views option can make those views for you. It costs the same 10 credits, refunded if they are not used.
- Check the model from every side, then download it. A rigged model downloads as GLB or FBX. Any model downloads as STL or OBJ for printing and modeling.
Prices and options change over time, so the pricing page has the current numbers. The smallest pack is $5 for 80 credits, which covers one rigged Standard model.
What to expect. The outline and the colors of your drawing come through best. The back of the model is a guess. Very thin parts, like whiskers or a sword in a small hand, may come out thick or missing. If the first try is wrong, a cleaner drawing usually helps more than a higher quality level.
Make the 3D model by hand in Blender
You can also build the model yourself, using your sketch as a guide. Blender is free. It takes longer, but you control every part.
- Load your drawing as a reference. Use Add, Image, Reference in the 3D view. The Blender manual says empties can show images, so you can model from blueprints or character sheets.
- Use flat views. Press 1 on the number pad for the front view and 3 for the side view. In these flat, orthographic views, the manual says it is easier to model and judge proportions. Put a front drawing in the front view and a side drawing in the side view.
- Block out the big shapes. Start with simple cubes, spheres and cylinders for the body, head and limbs. Line them up with the drawing from both views.
- Refine the shape. Join the pieces, add detail, and smooth the surface.
- Unwrap and paint. Cut the model into flat pieces and paint the texture. Our UV mapping guide explains this step.
- Rig it if it needs to move. See how to rig a character in Blender.
Two more Blender tools fit sketches well. Grease Pencil lets you draw lines that live in 3D space, so you can sketch right around a model. Trace Image to Grease Pencil turns a black and white drawing into Grease Pencil strokes you can then edit.
When to model by hand
- You need exact sizes, like a part that must fit another part.
- You need clean, even topology for a game character that bends a lot.
- Your style is very specific and an AI result keeps drifting from it.
- You want to learn 3D modeling.
Blender is not the only free choice. For exact parts, a CAD program fits better. Our guide to free 3D modeling software compares them by job.
A mix also works well. Make an AI model first, then use it as a starting block in Blender and rebuild the parts that matter.
After the model is made
- Make it move. Add motion from a sentence, like “wag the tail slowly”, with the AI 3D animation generator.
- Put it in a game. Bring it into Blender, Unity or Godot.
- Print it. Export STL, then check it in our free STL checker.
For more on picking pictures in general, read how to turn a 2D image into a 3D model.
Questions people ask
Can AI turn a pencil sketch into a 3D model?
Yes, if the sketch is clear. Darken the final lines, clean up stray strokes, and give it a plain background. A faint, scratchy sketch gives the AI less to work with, and extra strokes can turn into bumps or marks on the model.
Does Bake3D have a special sketch mode?
No. Bake3D treats a drawing like any other picture. That is fine, because it keeps the drawing's own style. If you ask for a rig, it may first prepare a cleaned up copy of your picture with the limbs apart, and that copy keeps the flat colors and lines of a drawing.
What if I only drew the front of my character?
That works. The back and sides are guessed. If you can, also draw a side and back view in the same pose and add them as extra views, so less is guessed.
Will the black outlines show on my 3D model?
Often, yes. The colors of your drawing become the model's texture, so dark lines can end up painted on the surface. If you do not want outlines on the model, color the drawing and keep the lines thin.
How much does it cost to turn a drawing into a 3D model?
In Bake3D, checking your drawing is free, three times a day with a free account. A model costs 30, 40 or 55 credits by quality, and a rig adds 25. The smallest pack is $5 for 80 credits. Modeling it yourself in Blender is free but takes much longer.
Can I turn a sketch into an STL file for 3D printing?
Yes. Make the model, then export STL from the Bake3D studio, or download another format and convert it. Check it in a free STL checker and set the size in millimetres before you print.
